Double Layers Metal Roofing Tile Roll Forming Machine Tile Making Machine
Process flow

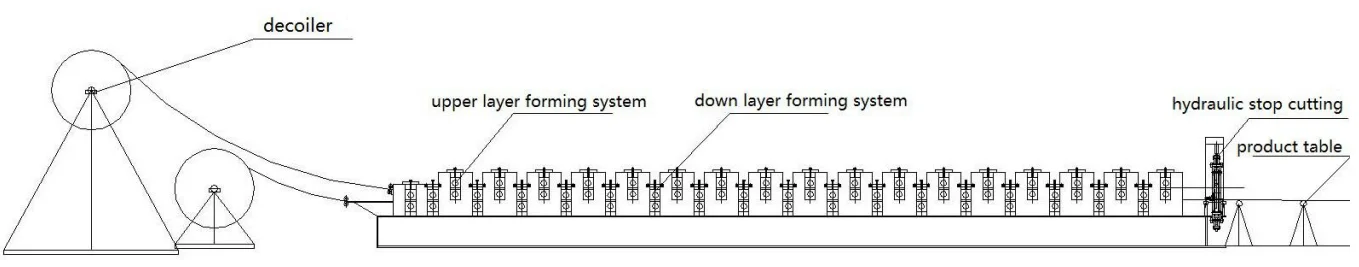

Decoiling--feeding--roll forming--hydraulic cutting--product table
A. terms of payment
1.tyof payment: 30% deposit in advance, when pick up the goods, the remaining need to be finished before transportation.
2. Delivery Time:10-15 days after the deposit.
3. Installation and debugging:
In case of sending technician to buyers country, The Buyer should bear all the cost including: visa ,round trip ticket ,Safety, the translator and suitable accommodation, also buyer should pay the salary 100USD/day.
4. Products warranty:
12 months, we provide technical support for whole life of the equipment.
5. Packaging Details: equipment for nude.
2.Manual decoiler
1) Capacity:5T
2) Coil inner diameter:450-550mm
3) Max coil width:1250mm
3.Roll forming machine
1) Machine structure:350H beam welded,18mm middle plate support
2) Shaft diameter:80mm,solid
3) Shaft material:45# steel,tempered treatment
4) Forming stations:IBR:18stations Step tile:13stations
5) Way of drive:Double chains drive,Chinese famous brand
6) Max rolling speed: IBR:0-20m/min Step tile:2-4m/min
7) Material of roller:45#forge steel processed with numerical control, polished and coated with chrome, surface with 0.05mm
8) Motor power:7.5kw Siemens brand motor
9) Voltage:380V,50HZ,3P
4.Hydraulic cutting system (Installed on the machine,no need to connect wire any more,also can save place)
1) Cutting method:Hydraulic cutting,by four pillars
2) Hydraulic power:5.5kw
3) Blade material:Cr12 with quenched treatment
4) Length tolerance:±1mm
|
|
